Bitrix24: cloud and on-premise your own Asterisk PBX PBX control panel app with push

Bitrix24 and Asterisk integration: your PBX inside the portal

We connect Bitrix24 to your own PBX and give you what standard telephony lacks: a PBX control panel right in the portal, our own mobile app that calls through your PBX, and, for on-premise Bitrix24, the portal’s standard dialer running on your Asterisk. Cards, the call log, recordings and tasks stay native.

Discuss telephony Case studies →

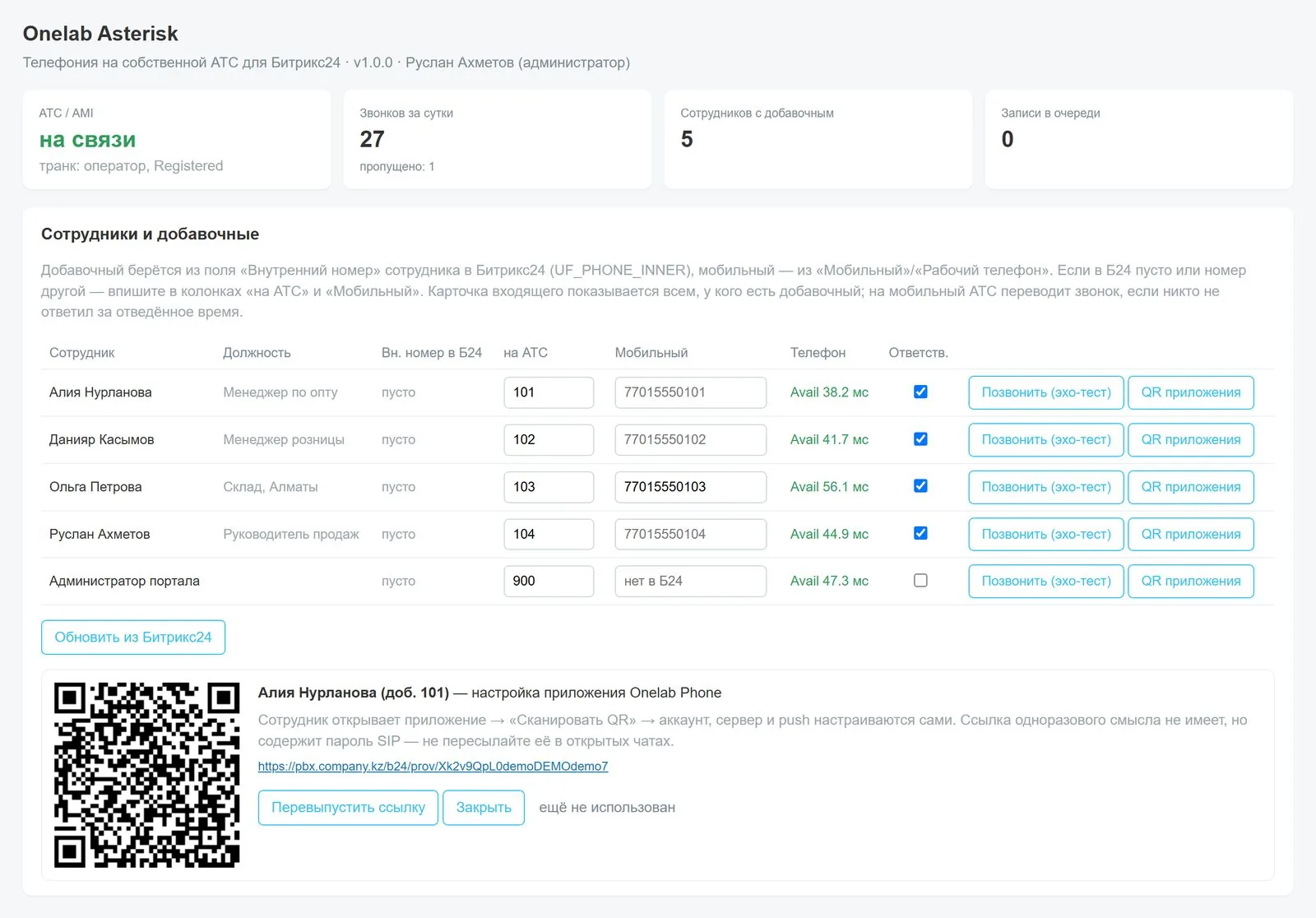

PBX control panel in Bitrix24: PBX status, employees, QR code for the app

Only from us

Three things standard Bitrix24 telephony doesn’t have

The portal’s standard telephony runs through the vendor’s cloud. We connect your own PBX — and manage it from Bitrix24.

PBX control panel in the portal

Employees, extensions, voice menu, routes
Blacklist and call log with playback
Online status of every phone

Our own Onelab Phone app

Calls from the work number through your PBX
Push wakes the phone even when the app is closed
Setup via QR, TLS and SRTP encryption

On-premise: the portal dialer on your PBX

The standard in-browser dialer works through your Asterisk
No need for the vendor’s cloud telephony
The Bitrix core stays unchanged, and updates don’t break anything

	Standard telephony / SIP connector	Onelab Asterisk
Where the voice goes	through the vendor’s cloud telephony	directly: carrier ⇄ your PBX ⇄ employee
If the portal is unavailable	routes depend on the vendor’s cloud	the menu, queue and ringing keep working on the PBX
PBX management	your own PBX is configured separately	a panel in the portal: employees, menu, routes
Mobile app	calls through the vendor’s telephony	Onelab Phone with push through your PBX
PBX security	the client’s responsibility	brute-force blocking, anti-fraud, encryption, monitoring

PBX panel

Managers control Asterisk right from the Bitrix24 menu

Employees are pulled from the portal, extensions and mobile numbers from their profiles, and menus and routes are changed with checkboxes. Click a screenshot to enlarge it.

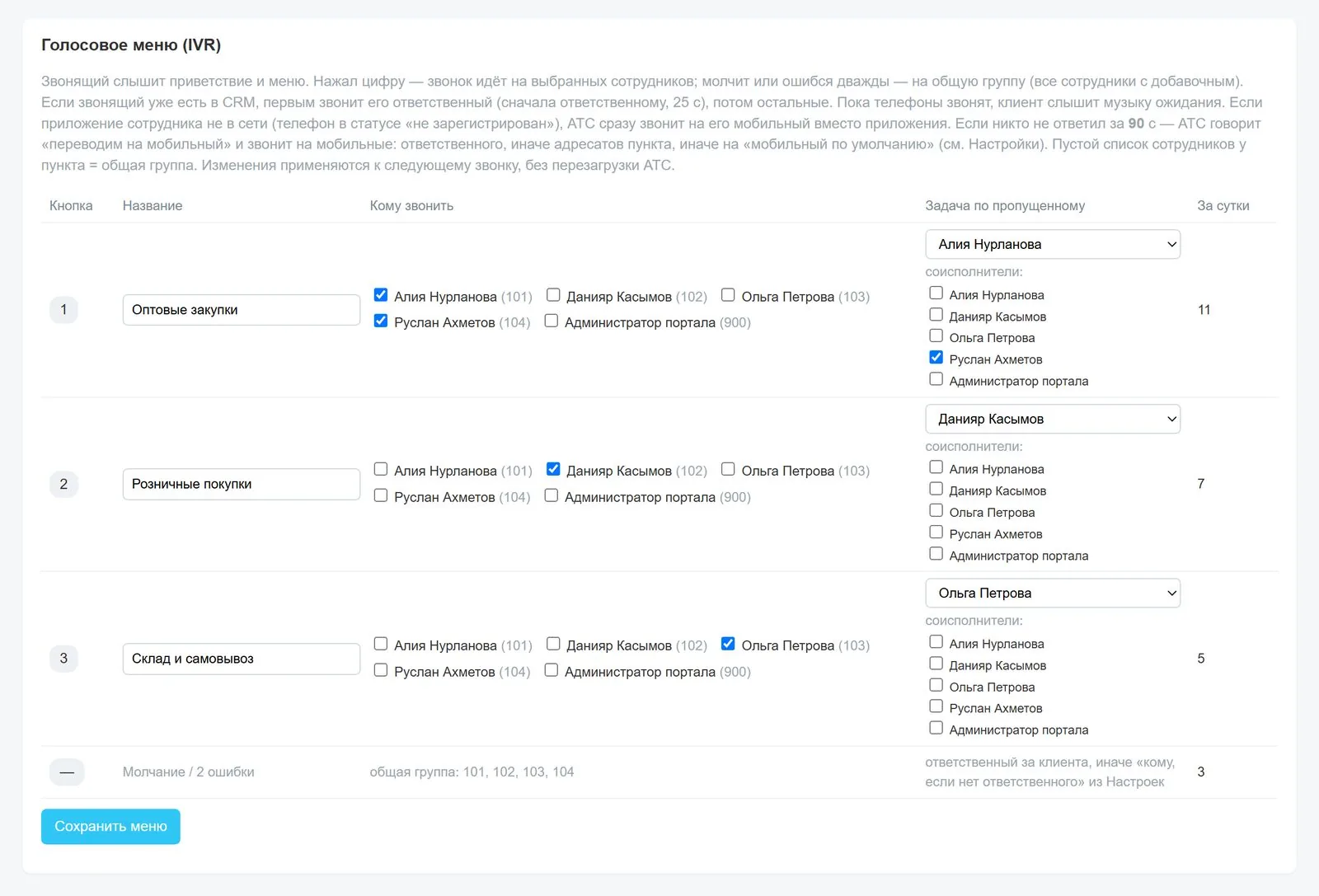

Voice menu: options, employees, tasks for missed calls — **Voice menu**Who to call for each key and who gets a task if nobody answers.

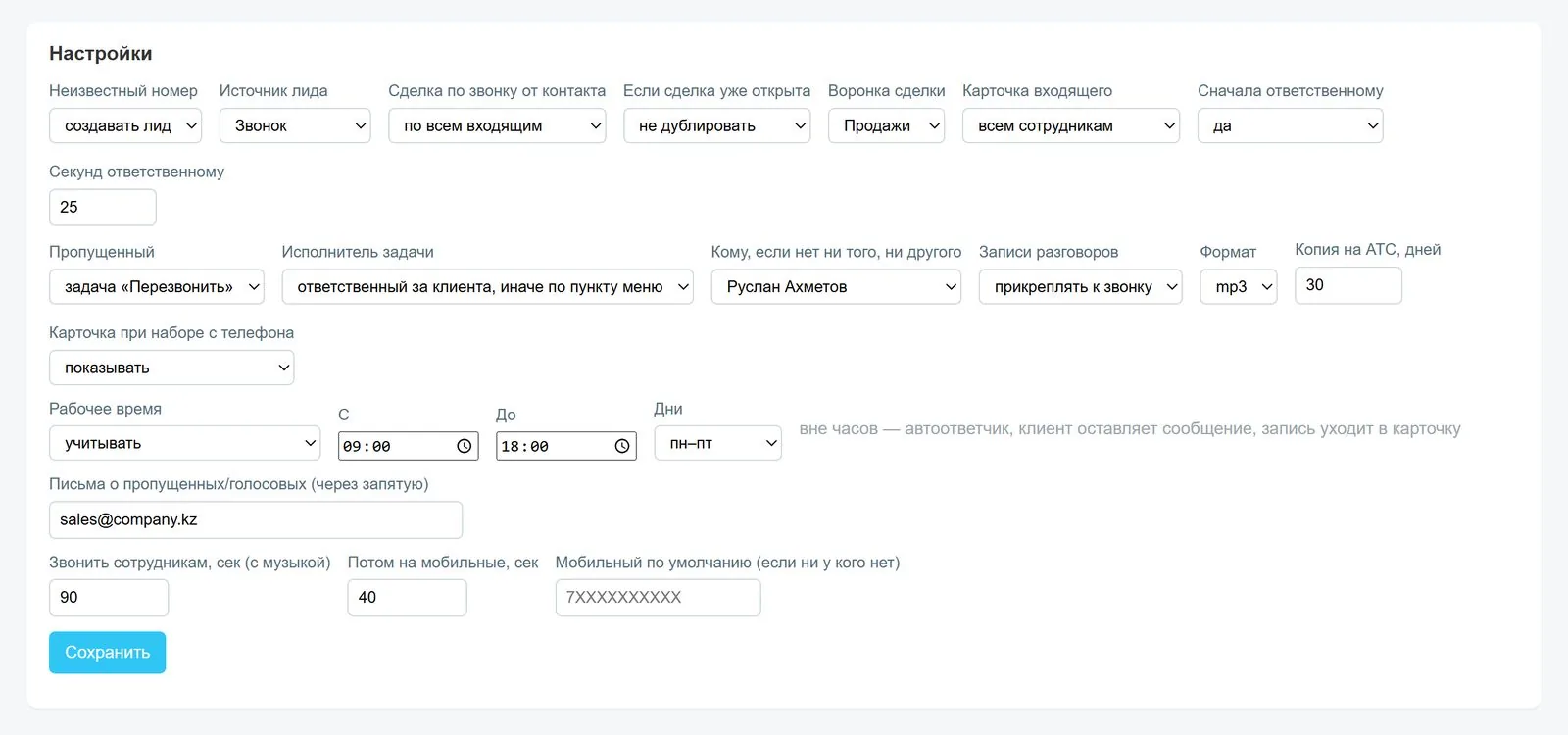

CRM, task, recording and working hours settings — **CRM rules and working hours**Leads, deals, pipeline, tasks, recordings, schedule and wait time.

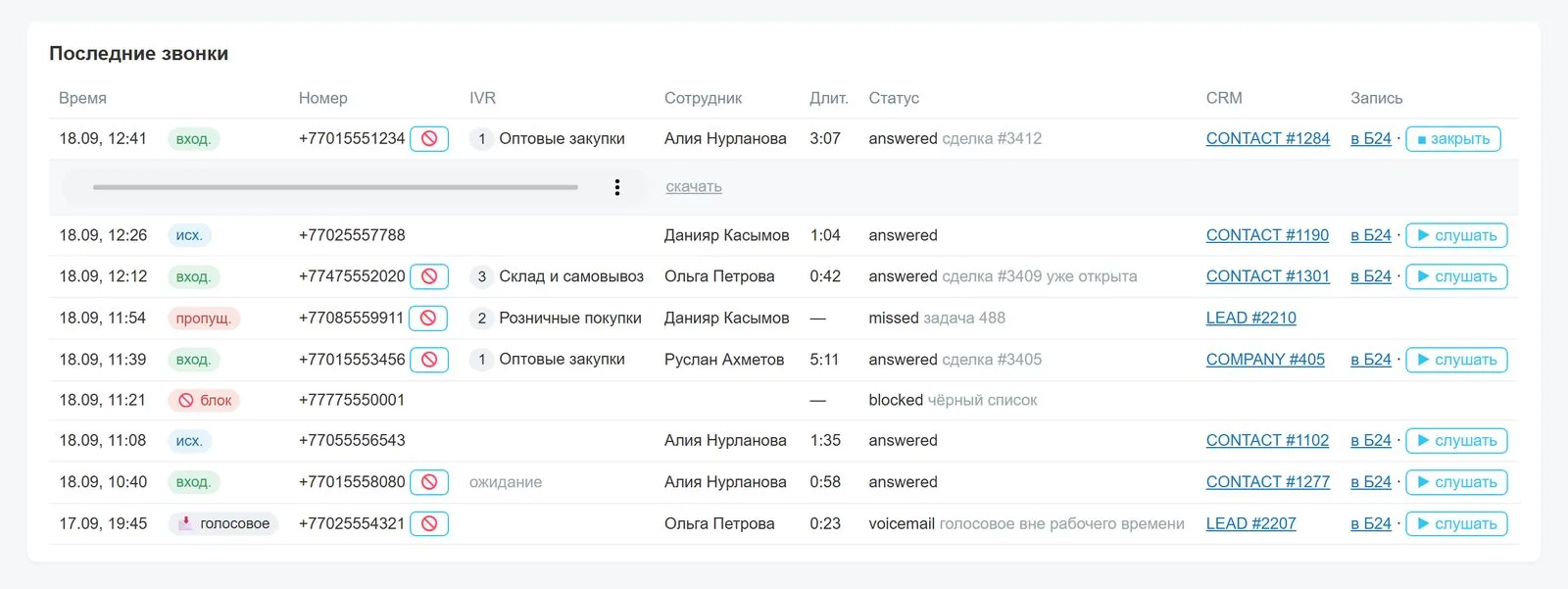

Call log with recording playback — **Call log**Menu option, employee, deal or task, recording in Bitrix24 and a player right in the row.

Screenshots of the working panel with fictitious employees, numbers and portal.

App

Onelab Phone: a work number in every employee’s pocket

The standard Bitrix24 app calls through the vendor’s telephony, not through your PBX. That’s why we built our own — free for clients.

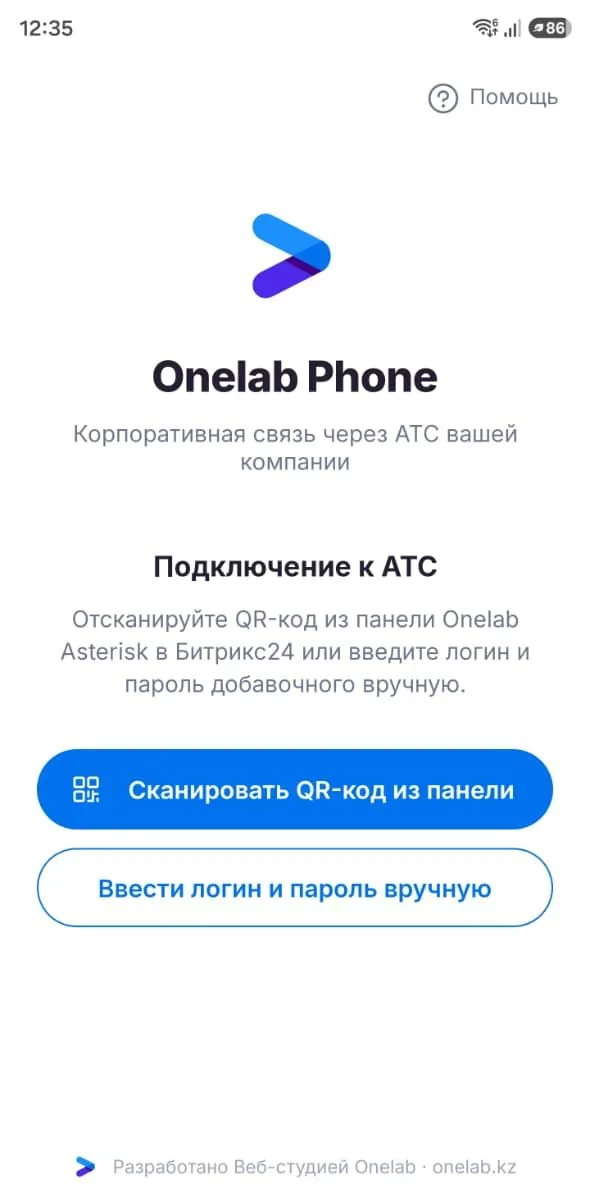

Onelab Phone: connecting to the PBX via QR — Connecting via QR

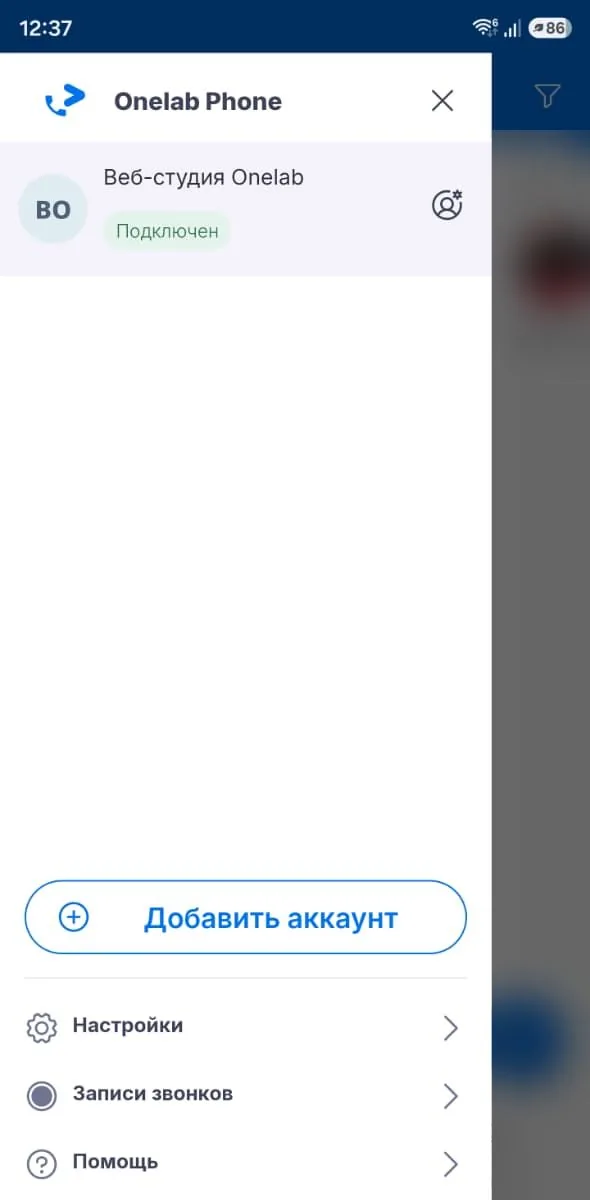

Onelab Phone: menu and connection status — Connection status

Rings even when the app is closedOn an incoming call, the PBX sends a push, and the phone wakes up and rings in about 7 seconds.
Setup in 10 secondsThe employee scans a QR code from the panel, and the account, server and push are configured automatically.
Calls from the work numberThe client sees the company number, and the call is recorded and added to the CRM card.
Encrypted callsThe connection to the PBX uses TLS, voice uses SRTP.
AndroidAny SIP client works on iPhone, but without our push.

How it’s built

PBX on a dedicated server, CRM in Bitrix24

The portal can be in the cloud: nothing is installed on it except a local app. The PBX server belongs to the company and doesn’t depend on third-party cloud plans.

Connectivity

Carrier SIP trunk: the company number
Onelab Phone on Android
SIP phones and softphones at workstations

⇄

Onelab PBX · dedicated server

Asterisk 22: menu, queues, transfer, recording
Integration service: CRM rules, tasks, recording upload
Push server for sleeping phones
Security: firewall, brute-force blocking, encryption

⇄

Bitrix24

Portal telephony: card, call log, one-click calling
CRM: leads, contacts, deals
Tasks and CoPilot: callbacks, transcripts

Recordings are stored in Bitrix24. The PBX server keeps a copy for 30 days.

No per-minute PBX fees. The number of employees is not limited by a license.

We don’t touch the portal. Integration runs through the standard Bitrix24 REST.

ONELAB case studies

Already running in the cloud and on-premise

15 of 15calls with a recording in the card

Cloud · trading company, Almaty

A three-option menu: wholesale purchasing, retail, warehouse. Each option has its own managers and its own assignee for missed-call tasks.

≈ 7 suntil a sleeping phone rings

7 of 7push wake-ups succeeded

3 daysfrom server to first call

A deal is created in the pipeline from a call, with no duplicates
A missed call immediately becomes a task for the department manager

0changes to the Bitrix core

On-premise · ONELAB portal

The standard dialer of on-premise Bitrix24 works through our PBX: employees answer clients from the browser, and the portal’s cards and call log are native.

2 daysfrom idea to working calls

1 dayto replicate for a client

0cloud telephony subscriptions

Voice menu with language selection, every call recorded
Parallel ringing to the employee’s mobile

September 2026, PBX log data.

Security

Protection is part of the basic setup

A hacked PBX can run up millions in international calls overnight. We close this off before launch: from 15 to 18 September, the trading company’s PBX repelled 6,628 password-guessing attempts and blocked 211 addresses, with 0 break-ins.

Password brute force

10 failed attempts mean a 30-minute block, a repeat offence — a one-week block.

Anti-fraud

International calls are disabled, and there are no more than five simultaneous outgoing calls.

Encryption

TLS and SRTP for the app, with automatic certificate renewal.

Flooding

Mass scanners are cut off by the firewall, so the PBX never sees them.

Access

Server management only from ONELAB addresses and only with a key.

Monitoring

The server is connected to our security monitoring system, with daily log review.

Pricing

One-time implementation and clear monthly costs

Item	Paid to	Amount
Turnkey implementationPBX server and security, carrier, Bitrix24 integration, panel, voice menu with voice-over, CRM and task rules, app, training	ONELAB	per estimate
PBX server2 vCPU, 2 GB RAM, 40 GB SSD in the onehost.kz data center, Almaty	onehost.kz	85,600 ₸ per year
Number and connectivitySIP trunk, subscription fee and minutes	telecom carrier	per carrier rates
Onelab Phone app and pushfor all company employees	—	0 ₸

Implementation

Four steps from server to first call

Server and carrierWe deploy the PBX, secure it and connect the carrier’s number.Result: the PBX accepts calls
Bitrix24 integrationWe install the app on the portal, pull in employees and set up leads, deals and tasks.Result: the card pops up on a call
Menu and scenariosWe record the greeting, map menu options to departments, and set the schedule and forwarding to mobiles.Result: calls reach the right department
Phones and monitoringWe hand out QR codes to employees, test calls on each phone and watch the logs for a week.Result: the whole team is reachable

We’ll show you telephony on your own portal

A half-hour call: we’ll look at how your calls flow today, demo the panel and the app live, and put together an estimate for your sales team.

Discuss telephony
